Tablet Section

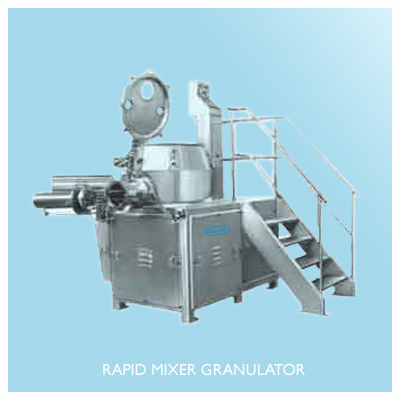

RAPID MIXER GRANULATOR
Main Impeller & Drive:
- The main impeller have speed 750/1500 synchronous dual HP motor, connected through a belt drive to a worm reduction gearbox with chain coupling
- Main impeller provides mixing of material at center and bottom of bowl, driven through a specially designed bearing housing that provides inside wash facility and prevents leakage of material frombottom, resulting into long lasting Gearbox
Main Bowl & Bowl Cover:
- Bowl and Beaters are made of SS 304 designed in 3 sections i.e. Flat bottom, cylindrical middle portion and conical top
- Bowl Cover with counter balance lid. Cover has vents, view ports and charging options
Chopper Blade:
- The Chopper Blade get drives from HP Dual speed 1500/3000 RPM synchronous speed motor
- The motor shaft is made of S.S. and chopper blade is specially designed has 4 blades S.S. Impeller
- The motor shaft is made of S.S. and chopper The chopper blade is coupled with motor and whole assembly is mounted horizontally with bowl
- Material bowl lifting & lowering valve
- Blower motor, start & stop
- Compressed air pressure gauges
Platform:
- Mounting Platform made of robust M.S. channel frame, becomes housing of Drive Assembly under the platform
- S.S. staircase and railings are provided for the platform & staircase
- All sides are covered with S.S. covers
Control Panel:
The control panel is mounted on platform and contains followings;
- Controls for discharge opening / closing
- Auto / manual controls
- Actuators for ON / OFF, slow, fast operation
- Ammeter / voltmeter for both motors
- Air regulator & Pressure gauge & air filter.
- Timer.
- Indicator Lights.
Pneumatic System:
- Pneumatic system is used for Operating the discharge valve(opening & closing)
- The system consists of an air filter pressure gauge a 2 way solenoid valve (for discharge valve) and other pipes ferrules & pneumatic fittings
SALIENT FEATURES :
- Machine can be provided with loading & unloading units to make an assembly line & reduce material handling (Optional Feature)
- Main Bearing Housing provided with 3 nos Oil Seals and sleeve to minimize powder leakages / cross contamination
- Main panel provided with pressure switch control for proper functioning of the machine at desired pressure of air only to prevent powder entry into impeller and eliminates jamming of impellers
- To eliminate powder entering the seal Air purged shaft seals are provided
- Built in cleaning system for both shaft seals
- Taper lock pulley on main drive to reduce vibration and better transmission efficiency
- Layouts to suit individual requirements possible
- Chopper motor with built in S.S. shaft to eliminate roller, bearings and reduce maintenance
- Discharge plunger provided with 3 position solenoid valve to open and close at desired levels, thereby regulating the discharge and preventing discharge of large lumps
